Marine signals

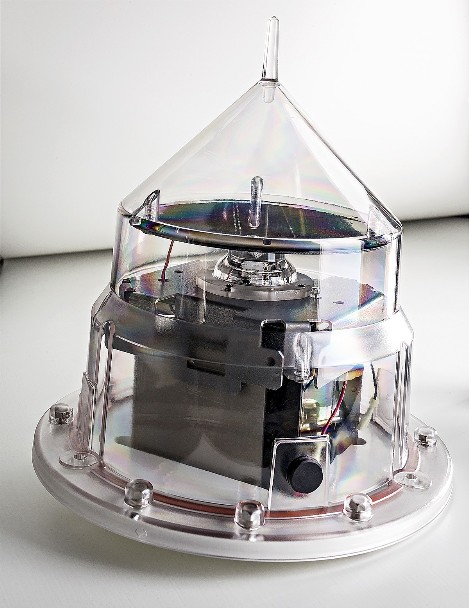

The Series CR2000 LED marine signal beacons serve a wide range of applications for buoys, fixed structures, windmills, etc. by capitalizing on a singular, flexible design platform. They withstand the harsh marine environment. The lights can be configured as self-contained (solar panel and battery inclusive), remotely powered, or hybrid sys tem with internal battery including cable, to connect to an external solar panel, allowing for remote or very large solar panels.

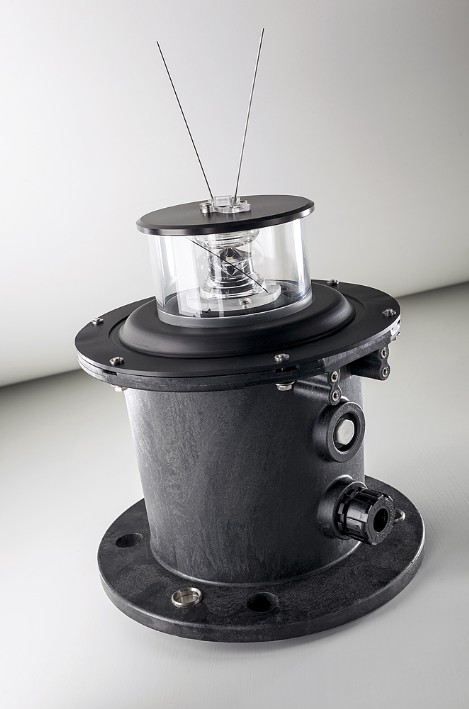

The Series CR7000 LED marine signal module and Series CR7100 LED marine signal lantern are designed to be a superior alternative to incandescent lanterns in the one to eight mile peak intensity visibility range with lower power comsumption yet greater vertical divergence.The CR7000 contains everything needed to replace the entire 155mm incandescent system and includes the LEDs, the side emitting lens(es), the electronic and the Daylight Control Sensor.

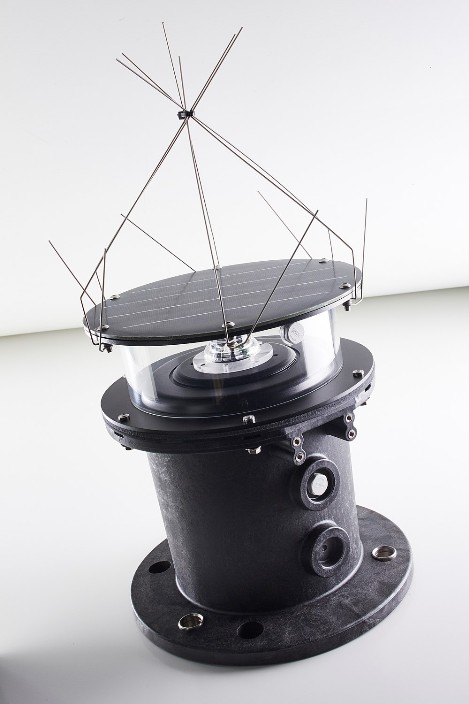

The CR8000 LED self-contained light offers 3-6 miles visibility. It is an LED self-contained/self-powered LED lantern that is low maintenance, complete bolt-on light package designed for the extreme conditions encountered by marine aids to navigation on bouys and fixed structures. It incorporates the LED light head, electronics with Daylight control Sensor, solar panel and battery. There are four power levels offering up to 6 nautical miles visibility and 256 flash rhythms selectable by infrared (IR) remote ocntrol. It is designed to meet the requirements of the U.S. Coast Guard specification 502 and 503 for buoys and fixed structures.
The CR155MM marine signal lantern is a high efficiency marine navigation lighting optic, yet is compact, lightweight (only 45% that of glass), and has high resistance to chipping and breaking. Its many uses include light markers for buoys, fixed platforms and structures, barges and any other application which requires a low powered warning navigation light or marker.The fresnel lens is molded to great accuracy in acrylic. Molded acrylic has better optical characteristics than pressed glass and allows excellent light transmittance. Acrylic is dimensinally stable and is unaffected by ultraviolet radiation.
The 2086A/B/BLR-PS is a basic model designed to operate with any solid state marine flasher which can provide filament failure sensing and voltage pulses to actuate the rotary solenoid. The rotary solenoid indexes the lamp turret by spring-wound ratched mechanism. This type of mechanism positions a new lamp into place quickly, accurately and consistently. Meets or exceeds the requirements of the U.S. Coast Guard Specification numbers 195 (2086A) and 478 (2086B) including vibration test at 5-G's, shock test at 40 G's, salt spray and inmersion.
